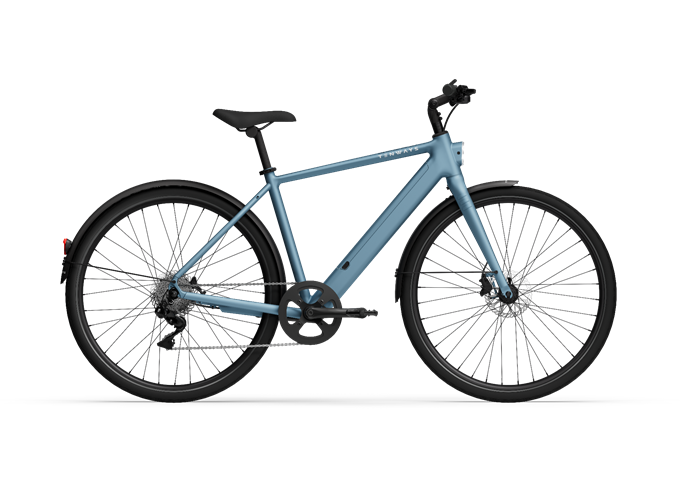

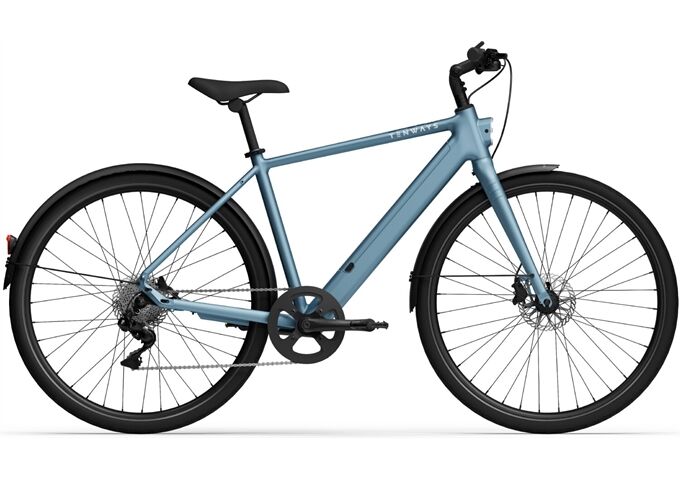

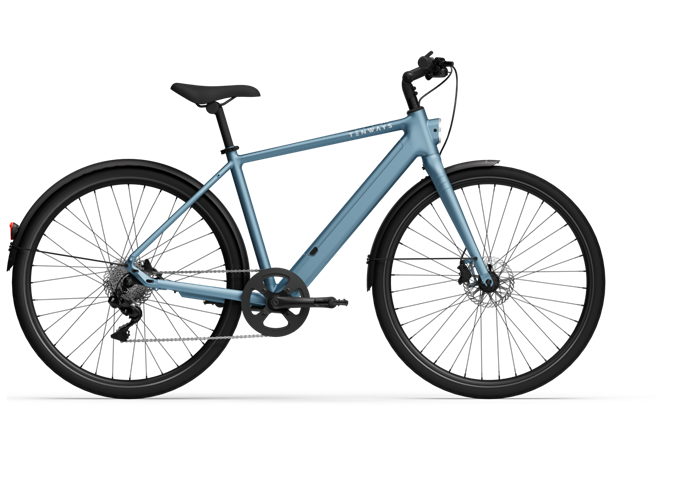

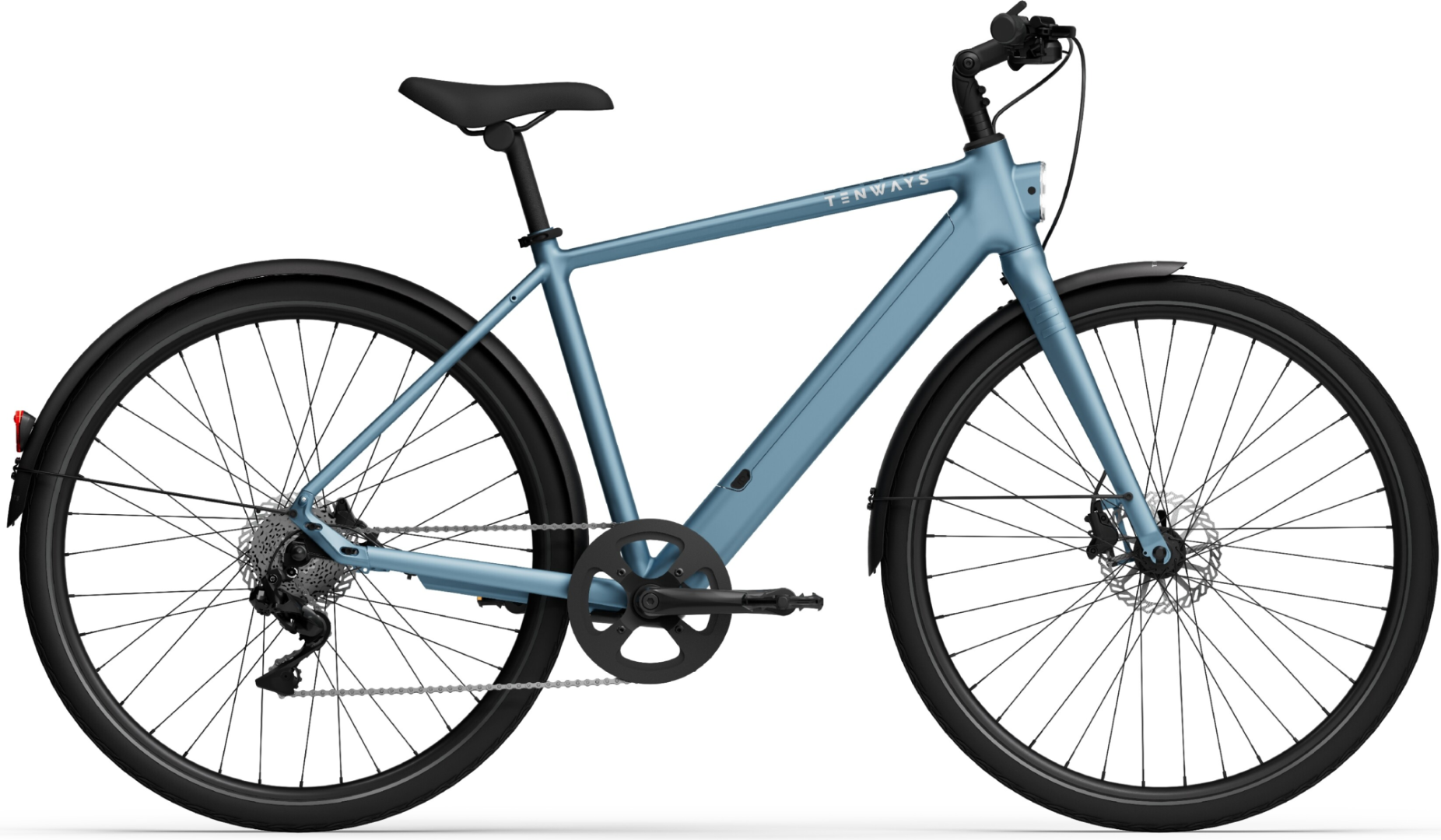

CGO600 PLUS - 360 Wh - Diamant

Motor/ Akku

MotorTENWAYS Hub Motor C-9, brushless, 36V*250W, 45Nm

Akku-Kapazität360

DisplayStar Union,SW102/T color display,for Bafang CR,A101.C-03 controller,700C,36V,speed limitation 25KM/H,fitting diameter 22.2,w/ cable (length w/ end 120mm)

Antrieb

KetteJa

SchaltungShimano, ARDR2000GS,REAR,DERAILLEUR,RD-R2000,CLARIS,GS,8-SPEED,DIRECT,ATTACHMENT,BULK

SchaltwerkShimano, ARDR2000GS,REAR,DERAILLEUR,RD-R2000,CLARIS,GS,8-SPEED,DIRECT,ATTACHMENT,BULK

SchalthebelShimano, ASLR2000RC,SHIFTING,LEVER,SL-R2000,CLARIS,FOR,FLAT,HANDLEBAR,ROAD,RIGHT,8-SPEED,RAPIDFIRE,PLUS,2400MM,INNER,OPTICAL,GEAR,DISPLAY,BULK

KurbelgarniturNWA48A-S1-3,3/32*48T,FD05-48T (CNC) anode matt black(wide narrow teeth),S1-3 aluminum four-arm anode matt black,cover anode matt black, BCD104,CL52.5,fit with Bafang (SR,PA232.32.ST,148,001) sensor

Bremsen

Bremsscheibe vorneTektro, TR160-52

Bremsscheibe hintenTektro, TR160-52

Rahmen

RahmenTENWAYS CGO600PLUS Frame,dwg:AT45T06-540,700C×540mm,YS 7781,Sky Blue,A3, Aluminium

RahmenformDiamant

Fahrwerk

GabelTENWAYS CGO600PLUS Fork, Aluminum,ø24.6*ø28.6*ø39.8*209MM, Sky Blue, A3

Laufräder & Bereifung

BereifungCST, C-1880,rubber,black,EPS stab-proof,anti-abration, reflective stripe28*1.75*2.00,CST tire,60TPI

Nabe vorneRX-25,two bearing disc brake type,aluminum,anode black,M9*14G*36H*100*108,shaft core 45#,w/ QR24 aluminum black quick release,inner width L:112MM,w/o LOGO

Ausstattungsmerkmale

AusstattungsmerkmaleJa

AusstattungsmerkmaleRSP-AD001,aluminum,matt black,ø30.4*350mm,laser carving safety line and scale,w/ black clip,black screws,w/o LOGO,ISO-M standard

sonstiges

BeleuchtungDHY05,front light,LED,6V,w/ 2 core cable w/ end 125MM(Bafang M2.6),CE/ROHS,w/ 2PCS black countersunk cross screw M3*10,black rubber plug 2PCS

Gewicht17,00

zul. Gesamtgewicht120

Modelljahr2025

RahmenformDiamant
