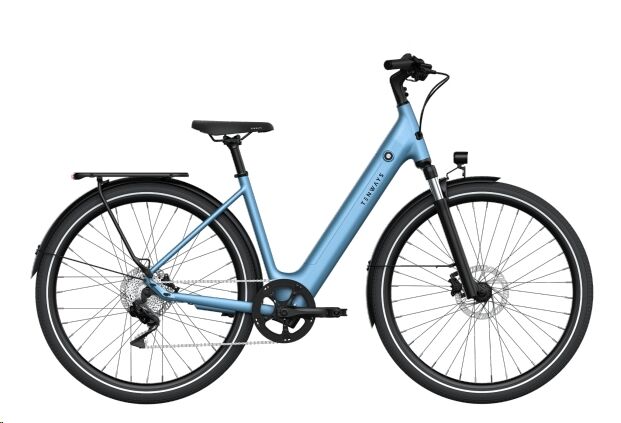

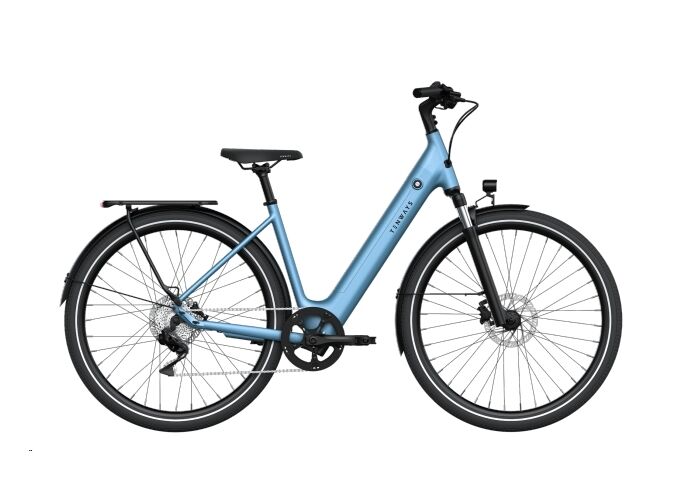

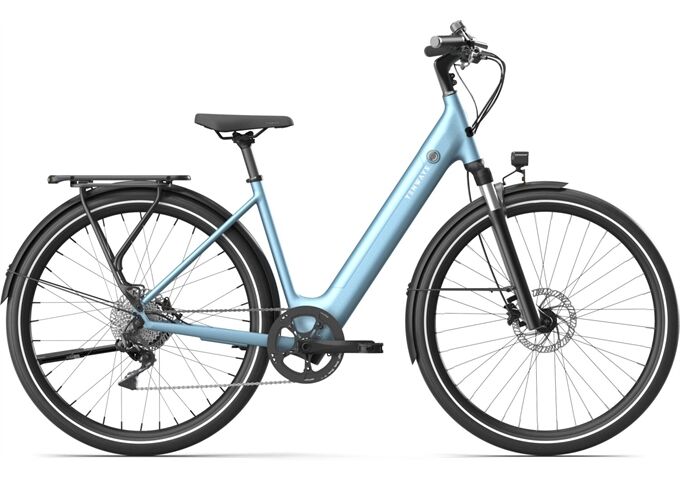

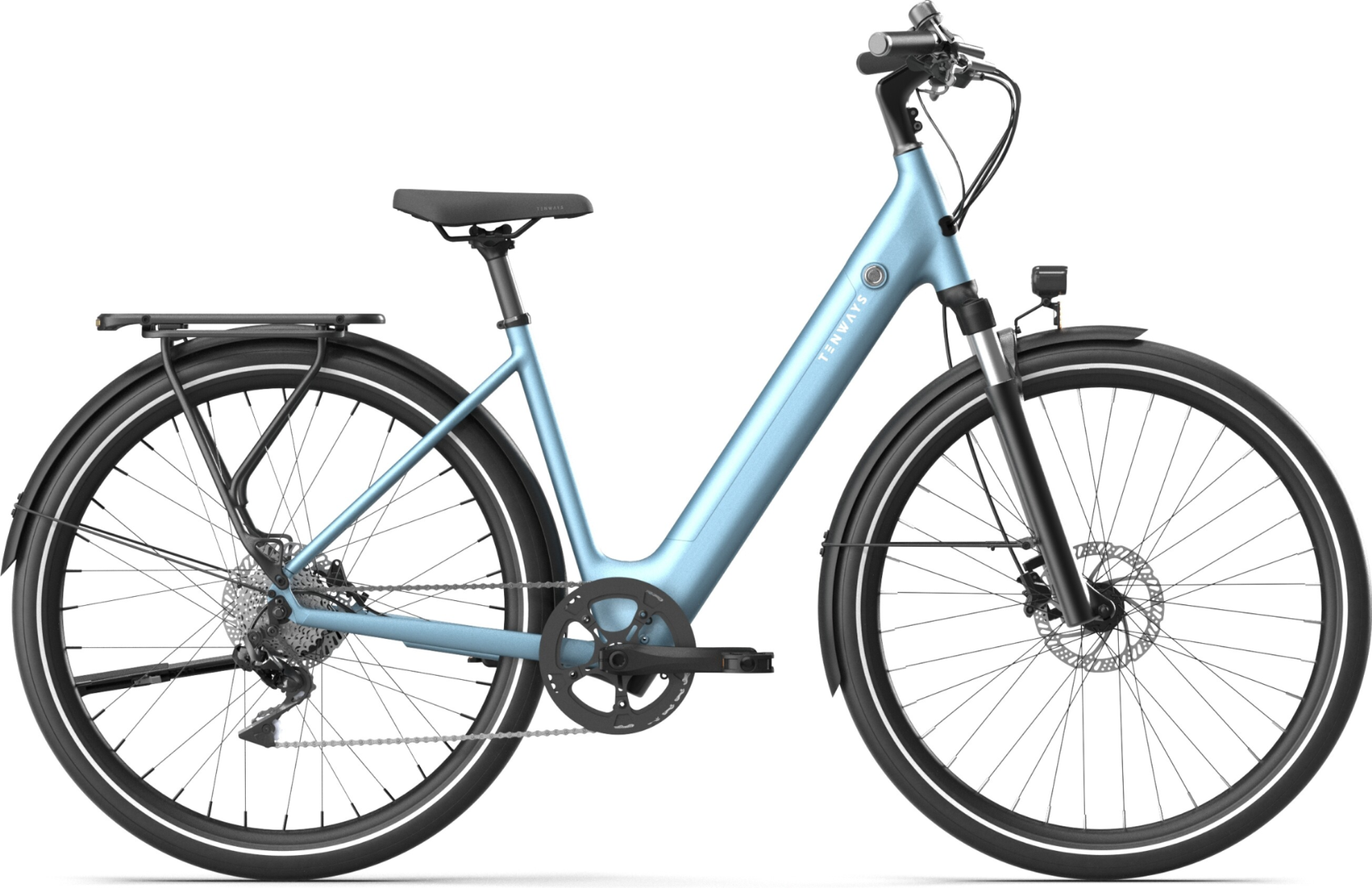

CGO800 PLUS - 475 Wh - Wave blau

Motor/ Akku

Motor-HerstellerTENWAYS C9 Hub Motor (250 W Power, 45 Nm Torque

MotorTENWAYS Hub Motor C-9, brushless, 36V*250W, 45Nm

Akku475.2 Wh (36 V, 13.2 Ah) Lithium-ion Battery with 18650 cells

Akku-Kapazität475

DisplayKingmeter, K5248+L5,LCD display

Antrieb

KetteJa

SchaltungShimano, ARDR2000GS,REAR,DERAILLEUR,RD-R2000,CLARIS,GS,8-SPEED,DIRECT,ATTACHMENT,BULK

SchaltwerkShimano, ARDR2000GS,REAR,DERAILLEUR,RD-R2000,CLARIS,GS,8-SPEED,DIRECT,ATTACHMENT,BULK

SchalthebelShimano, ASLR2000RC,SHIFTING,LEVER,SL-R2000,CLARIS,FOR,FLAT,HANDLEBAR,ROAD,RIGHT,8-SPEED,RAPIDFIRE,PLUS,2400MM,INNER,OPTICAL,GEAR,DISPLAY,BULK

KurbelgarniturNWA48A-S1-3,3/32*48T,FD05-48T (CNC) anode matt black(wide narrow teeth),S1-3 aluminum four-arm anode matt black,cover anode matt black, BCD104,CL52.5,fit with Bafang (SR,PA232.32.ST,148,001) sensor

Bremsen

Bremsscheibe vornePRT006-160,cassette disc,high polish Shimano standard,disc outer diameter 160mm

Bremsscheibe hintenPRT006-160,cassette disc,high polish Shimano standard,disc outer diameter 160mm

Rahmen

RahmenTENWAYS CGO800PLUS Frame,dwg:AT45T12-480,700C×480mm,YS7781,Sky Blue,A3, Aluminium

RahmenformWave

Fahrwerk

GabelSR suntour Fork 700C C-GO 800S alloy,SF24-NEX-E25-DS-700C-63,black

Federweg vorne50

Laufräder & Bereifung

BereifungCST, C1635,rubber,60TPI,black,28"*2.0"(700*48C),3mm orange stab-proof,w/ reflective stripe

Nabe vorneRX-25,2 bearing disc rotor type,aluminum,anode black,M9*14G*36H*100*108,shaft core 45#,w/ QR24 aluminum black quick release,L:115MM

Ausstattungsmerkmale

AusstattungsmerkmaleRear carrier,aluminum,matt black

AusstattungsmerkmaleJa

AusstattungsmerkmaleRSP-AD001,aluminum,matt black,ø30.4*350mm,laser carving safety line and scale,w/ black clip,black screws, ISO-M standard

sonstiges

BeleuchtungDH002 front light(w/ reflector),black,LED,6-48V,bracket DZ01,cable w/ end 50MM(2 core male end M2.6),cable dwg: EB,S1T0,032,CE/ECE/ROHS standard

Gewicht20,00

zul. Gesamtgewicht120

Modelljahr2025

RahmenformWave
